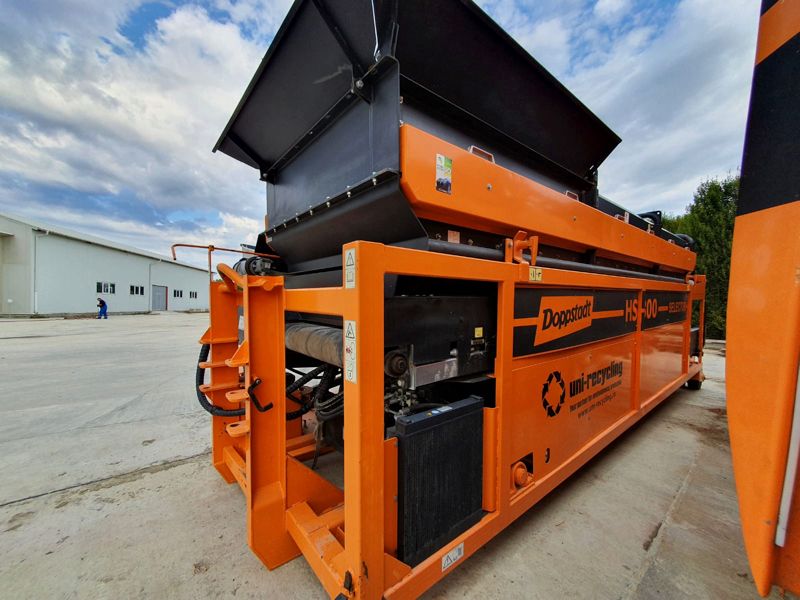

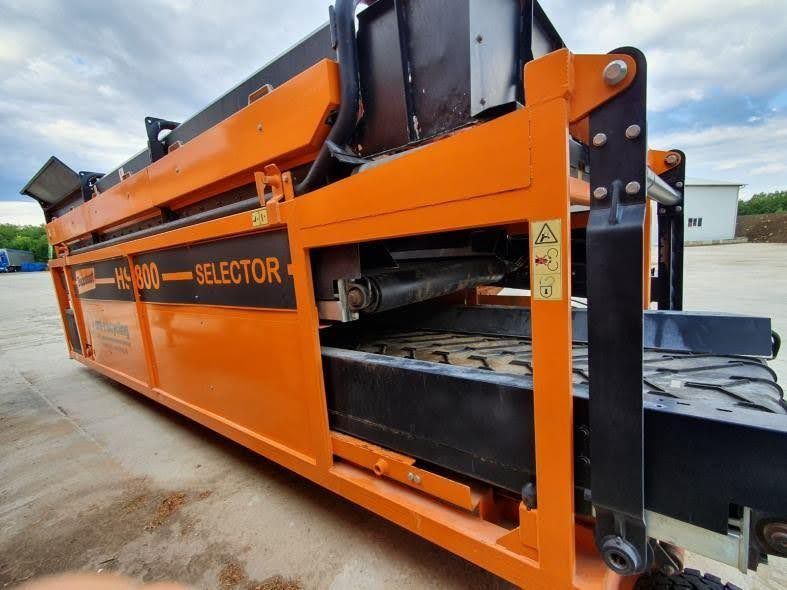

Star Screen Selector HS 800
- Manufacture year: 2016
- Manufacture No.: 007
- Working hours: N/A (Only used for tests with shredded waste wood (pallets)
- Chassis: Hook-lift
- Total weight (kg): approx. 8.700
- Length (mm): approx. 16.000
- Width (mm): approx. 2.750
- Height (mm): approx. 4.500
- Transport width (mm): 2.550
- Transport height (mm): 2.700
- Transport length (mm): 7.900
- Engine type: hydraulic connection from DW
- Make: hydraulic
- Discharge conveyor width (mm): 1.200
- Discharge conveyor length (mm): approx. 5.000
- Upper screening deck width (mm): 1.400
- Upper screening deck length (mm): 5.000
- L-exact screening deck
- Grain size appr. 0 -120 mm
- 90 mm large stars with 340 mm diameter.
- Eliptical shape to loosen the material more efficiently
- Star screen deck size L-exact
- New hydro motors for stars deck drive
- Price does not include transport, commissioning
- Location: Meri, Draganesti, Prahova county, Romania
Your contact
Print advertisement
More information
Application:
The HS 800 is designed for combined operation with the pre-shredder DW 3060 Type F Biopower. The machine is suitable for the screening of oversize material from pre-shdredded waste wood, roots or green waste.
Advantages:
- Simple, robust construction, no electrics, powered by pre-shredder via additional hydraulic connection from pre-shredder.
- Integrated conveyor returns oversize material to pre-shredder
- Defined final product, variable mesh size by the way of rpm adjustment or exchange of the whole unit.
- Compact transport dimensions, short set-up time for transport and operational readiness.
- Low operational costs, minimum production costs per t of finished goods.
