Developed for
major jobs
Genuine heavyweight, full power and maximum flexibility.

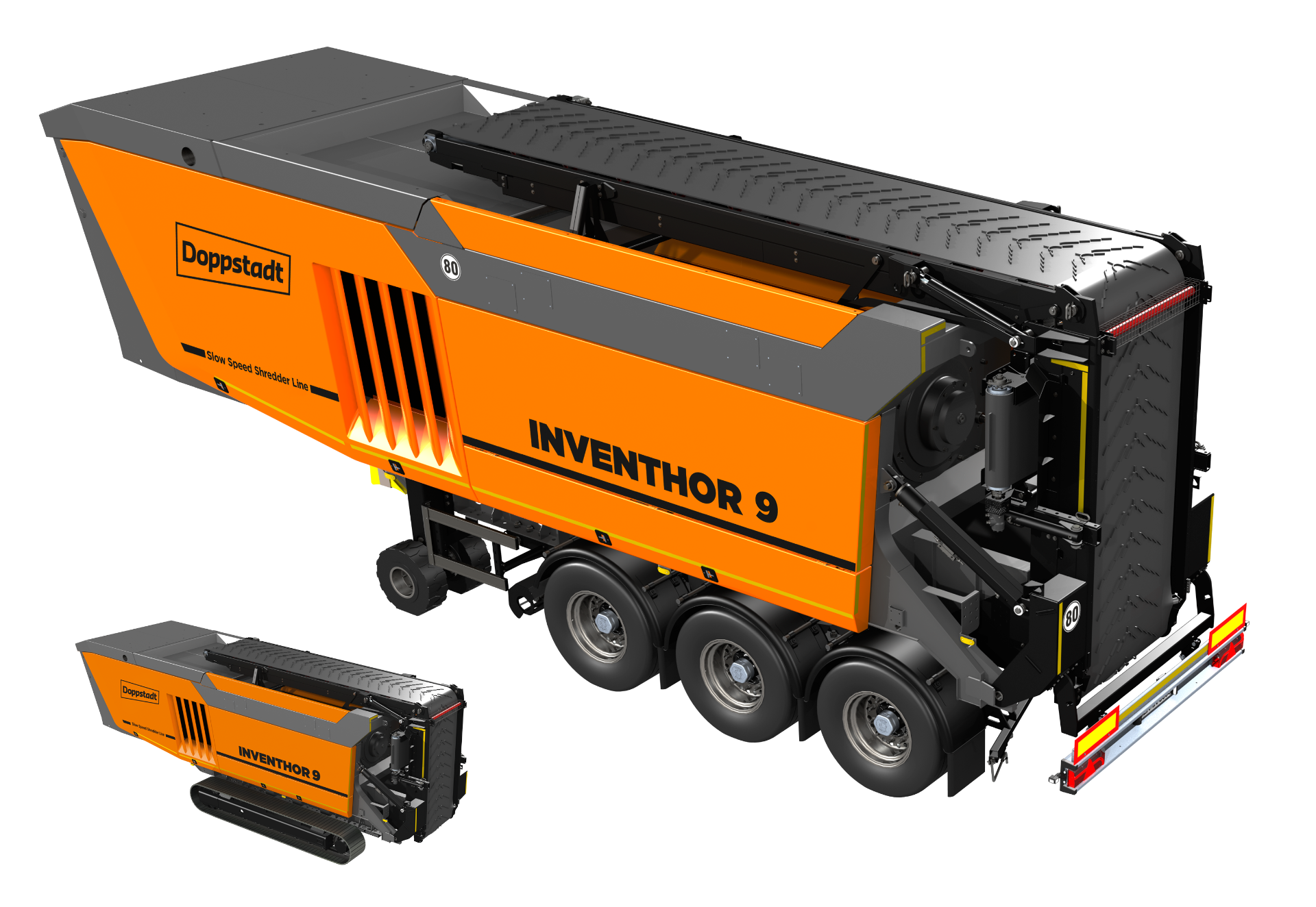

Inventhor 9
The INVENTHOR 9 opens up completely new possibilities when it comes to effective shredding: From material feed to product removal, it stands out thanks to a whole number of innovations – for instance, the new VarioDirect Drive, which continuously transmits power to the shredding drum so that the engine always runs at the optimum operating point, or the new enclosure concept ensuring optimal accessibility from all sides.
Regardless of whatever is to be shredded: The INVENTHOR 9 is the best new solution for every demanding job.
- Application
- Specials
- Benefits
- Downloads and Datasheets
Applications
Specials
Doppstadt is consistently continuing its “Smart Solutions” concept with the Inventhor 6.2. The latest generation of slow speed shredders is designed to deliver maximum efficiency during shredding.
For instance, with its unique VarioDirect Drive concept. It leverages Doppstadt’s patented gearbox. This combination of mechanical and hydraulic gears continuously and steplessly transfers the torque to the shredding system. By doing so, the speed of the shredding shaft can be flexibly adapted to the different material throughput, while the drive is very efficient at delivering a high level of performance at a constant speed. As a result, it is also possible to stop and start the shredding process even under load. And in case of blockage, the VarioDirect Drive can automatically switch to reverse mode.
The intuitive operating concept and modular design of the Inventhor 6.2 ensure maximum availability for a wide range of applications. The cutting gap can be easily adjusted at the touch of a button to adapt the shredding result to changing requirements.
On top of that, its material feed system ensures that the shredding process goes smoothly. It boasts a tipping hopper volume of 5 m³, which can be increased up to approx. 8 m³ by using removable hopper extensions. Thanks to the loading width of over 3.3 metres, loading with large wheel loader buckets is also operator-friendly. The hopper can either be loaded and tilted batch-wise or it can be set at a suitable angle such that the material automatically slides into the shredding area.
The Inventhor’s counter comb door, which opens up wide, makes the entire shredding area and engine compartment easy to access. This means that maintenance and switchover procedures can be carried out quickly and safely, decisively increasing the shredder’s uptime.
The machine is distinguished by great flexibility. Different discharge conveyor belt systems can be easily mounted and replaced using the central attachment system. As a result, selectable belt lengths of 4,9 m or 7 m allow for implementing very high discharge heights and steplessly adjustable belt angles.
The Inventhor 6.2 is available as standard with a trailer, semi-trailer or tracked chassis so that it can also be moved automatically as needed.
Benefits
- variable, continuous power transmission thanks to our patented VarioDirect Drive concept
- high level of flexibility and quick retrofitting thanks to our patented Dopp-Lock® system with bolted tools
- operator-friendly loading with wheel loader or excavator possible as well as removable hopper extensions for a lower loading height
- moderate operating costs, high machine uptime
- outstanding capacity even with demanding applications and maximum throughput rates
- optionally available engine types (CAT / MTU) for different performance requirements
- excellent monitoring concept for shredding process
- maximum throughput rates
- quick uptime after maintenance and improved on-the-job safety during maintenance
- lower specific fuel consumption and reduced noise emissions
- optionally available as a wheeled semi-trailer (SA), with trailer chassis (A) or track-mounted chassis (K) with different discharge conveyor lengths (4.9 and 7 m)
